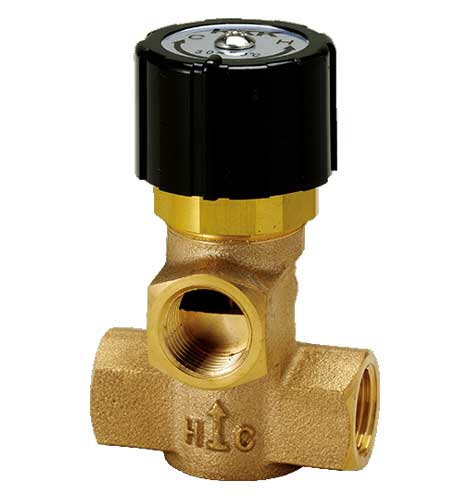

Automatic Mixing Valve

Automatic Mixing Valve (TM)

Product Code: TM
The automatic mixing valve's thermal wax element automatically adjusts the downstream flow of hot and cold water to a desired temperature. The open/close operations are controlled directly by a thermal wax element eliminating any need for wiring.

Basic Applications:

The Automatic Mixing Valve is used in hot water supply systems of hotels, beauty salons, heated swimming pools, floor heating units and central heating systems.

Features:

  • Completely Automatic Mixing Valve
  • No Wiring Required
  • Bronze Material Prevents Rust Contamination

Specifications:

Applicable Fluid: Water, Hot Water
Working Pressure (Cold): 0.2 to 0.6 MPa
Working Pressure (Hot): See table below.
Temp. Control Range: 30 to 50°C
Shell Test Pressure: 2.4 MPa
Size Wrkg. Pres. (Hot) Rated Flow Rate
13mm 0.02 to 0.3 MPa 20 L/min
20mm 0.02 to 0.3 MPa 33 L/min
25mm 0.02 to 0.2 MPa 80 L/min
*Cold Water Pressure ≥ Hot Water Pressure
