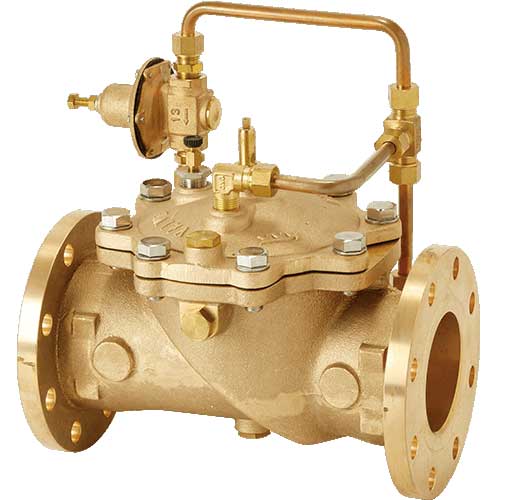

Pilot Operated PRV

Pilot Operated PRV (KRT)

Product Code: KRT

Basic Applications:

The KRT is a pilot operated pressure reducing valve, designed to be used in various places where large flow is required.

Product Description:

The KRT automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a pilot mechanism that responds to changes in the water supply pressure.

Features:

  • Completely Automatic
  • Bronze Material Prevents Rust Contamination
  • Simple Installation and Maintenance
  • Easy Adjustment

Specifications:

Nominal Size: 150mm (6"), 200mm (8"), 250mm (10"), 300mm (12")
Working Temperature: 0 to 80°C
Applicable Fluid: Water
Working Pressure (inlet): above 0 to 1.6 MPa
Standard Set Pressure: 200kPa
Shell Test Pressure: 2.4 MPa
Set Pressure Outlet
100~350kPa
350~550kPa
550~750kPa
750~950kPa
950kPa~1200kPa
