Quiet PRV

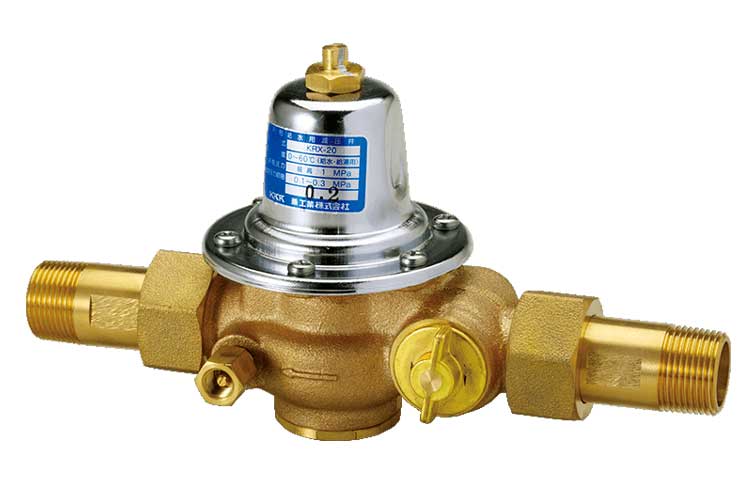

Quiet PRV (KRX)

Product Code: KRX

Basic Applications:

The KRX is a direct acting pressure reducing valve used in various water systems, but is especially suitable where quiet operation is needed such as in hotels and condominiums.

Product Description:

The KRX automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a direct acting mechanism that responds to changes in the water supply pressure.

Features:

  • Completely Automatic
  • Extremely Quiet
  • Bronze Material Prevents Rust Contamination
  • Simple Installation and Maintenance
This quiet valve has been housed and installed on a pipe shaft to protect other instruments and pipes. The built-in strainer prevents clogging due to sand or other foreign matter and can be easily cleaned by simply removing the strainer cap on the inlet side. The use of a union joint allows for easy installation and maintenance. A pressure gauge can be easily installed in the adapter while water is flowing without causing any water leakage.

Specifications:

Nominal Size: 20mm (¾")
Working Temperature: KRX: 0 to 60°C; KRX-H: 0 to 80°C
Applicable Fluid: Water (Cold/Hot)
Working Pressure (inlet): above 0 to 1.6 MPa
Set Outlet Pressure: 0.1~0.3MPa
Standard Set Pressure: 0.2MPa
Flow Rate: 55 L/min
Connection: Union Joint
