Direct Acting Wafer PRV

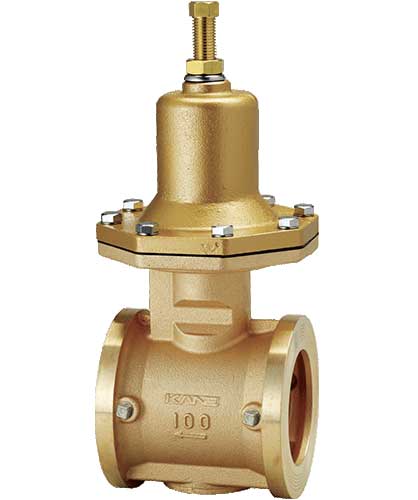

Direct Acting Wafer PRV (KRW)

Product Code: KRW
The KRW automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a balanced-pressure mechanism which responds to changes in the water supply pressure.

Basic Applications:

The KRW is a direct actuated pressure reducing valve designed to be used in various places. Use the KRW in high rise buildings to control pressure fluctuations between floors in the various water systems such as ones for potable water, air conditioning, boiler feed, etc. The KRW is used in industrial plants upstream of equipment requiring lower pressure such. The KRW can also be used in city water systems to reduce pressure from high pressure distribution zones to service areas.

Features:

  • Completely Automatic
  • New Wafer Design Cuts Weight by 50%
  • Installation Time Cut in Half
  • Bronze Material Prevents Rust Contamination
  • Simple Installation and Maintenance
  • Operates Vertically or Horizontally

Specifications:

Nominal Sizes: 65mm (2½"), 80mm (3"), 100mm (4"), 125mm (5"), 150mm (6")
Working Temperature: 0 to 80°C
Applicable Fluid: Water
Working Pressure (inlet): above 0 to 1.6 MPa
Standard Set Pressure: 200kPa
Shell Test Pressure: 2.4 MPa
Size Set Pressure Outlet Rated Flow Rate
65mm 100~200kPa, 200~350kPa, 350~650kPa, 650~1200kPa 190 L/min
80mm 100~200kPa, 200~350kPa, 350~650kPa, 650~1200kPa 430 L/min
100mm 100~400kPa, 400~700kPa, 700~1000kPa, 1000~1200kPa 650 L/min
125mm 100~200kPa, 200~350kPa, 350~650kPa, 650~1200kPa 1100 L/min
150mm 100~200kPa, 200~400kPa, 400~700kPa, 700~1000kPa 1300L/min
