Constant Water Supply PRV

Constant Water Supply PRV (FRV)

Product Code: FRV

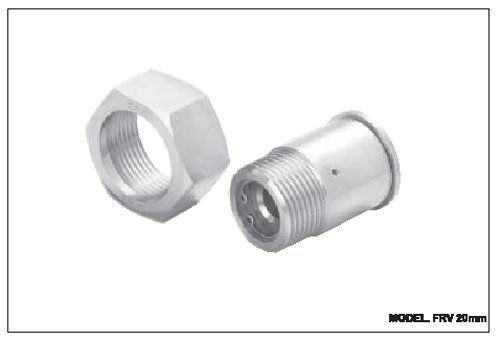

The FRV is designed with a union nut and a male threaded end so as to provide quick and easy installation. The FRV automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a piston mechanism that responds to changes in the water supply pressure.

Basic Applications:

The FRV is a constant water supply pressure reducing valve designed to save water by reducing outlet pressure and decreasing water outflow. Moreover, it can be used where the piping space is too limited to install conventional pressure reducing valves.

Features:

  • Smallest of its Type in the World
  • Extremely Durable
  • Each Unit Custom Designed
  • Use Where Space Is Limited
  • Simple and Quick Installation
  • Operates Vertically or Horizontally

Specifications:

Nominal Size: 15mm (½"), 20mm (¾"), 25mm (1"), 50mm (2")
Working Temperature: 0 to 60°C
Applicable Fluid: Water
Working Pressure (inlet): Above 0 to 1.6 MPa
