Pilot Kick Solenoid Valve

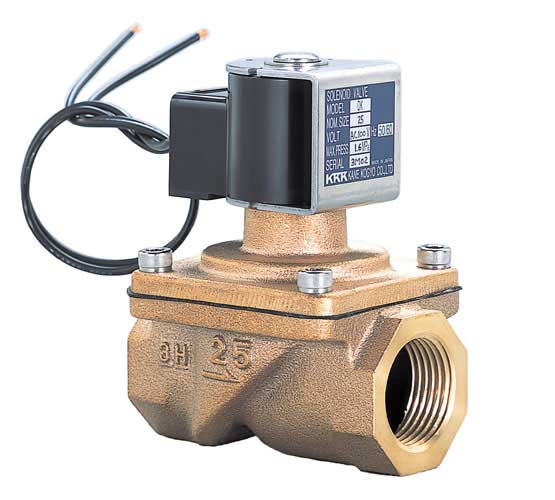

Pilot Kick Solenoid Valve (DK)

Product Code: DK

Basic Applications:

The DK is an electronically controlled valve used in various water systems.

Product Description:

The DK is an on-off control valve that either opens or closes by using a solenoid control mechanism that responds electrical signals sent to the solenoid mechanism. The solenoid valve uses a molded coil that is free from troubles such as electrical leakage or coil burn. The built-in stainless steel strainer prevents clogging due to sand or other foreign matter. The DK uses a normally closed solenoid.

Features:

  • Trouble-Free Molded Coil Design
  • Strainer Feature
  • Prevents Water Hammering
  • Bronze and Stainless Steel Material Prevents Rust Contamination
  • Simple Installation and Maintenance
  • Fast Acting

Specifications:

Working Temperature: 0 to 60°C
Applicable Fluid: Water
Working Pressure: 0.03 to 1.6 MPa
Insulation Grade: B Grade
Voltages: AC24, 100, 110, 220, 230V; DC12, 24V
Operation: Normally Closed
