Pilot Operated Flanged FV (DZ)

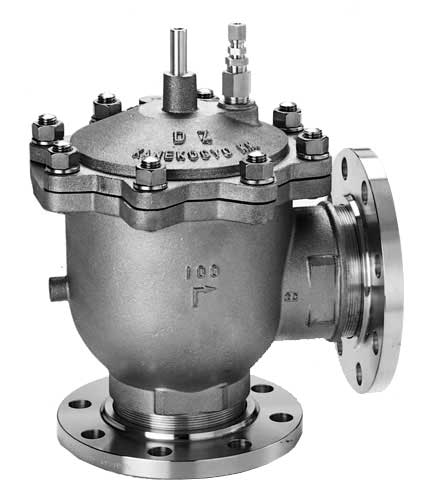

Pilot Operated Flanged Float Valve (DZ)

Product Code: DZ
This valve is designed to fully open when the pilot float registers that the water level in the tank reaches the preset low level and to close drip-tight when the level reaches the preset high point.

The Pilot can be adjusted to allow varying water level heights. The adjustable spindle on the DZ unit allows the user to control the flow rate. This can be especially useful in drought conditions.

Basic Applications:

The DZ Pilot Operated Float Valve is used to accurately maintain water levels inside water reservoir tanks. Its new design allows for greater outflow.

Features:

  • Fully Adjustable to Maintain Desired Level Settings
  • Design Features Prevent Clogging, Jamming, and Overflow
  • Bronze Prevents Contamination of Potable Water
  • Stainless Steel Prevents Seat Damage
  • Easy Maintenance Design
  • New Design Allows for Greater Flow

Specifications:

Available Sizes: Flanged: 80mm, 100mm, 150mm
Applicable Fluid: Water
Working Pressure (inlet): 0.03 to 1.6 MPa
Working Temperature: 0 to 60°C
