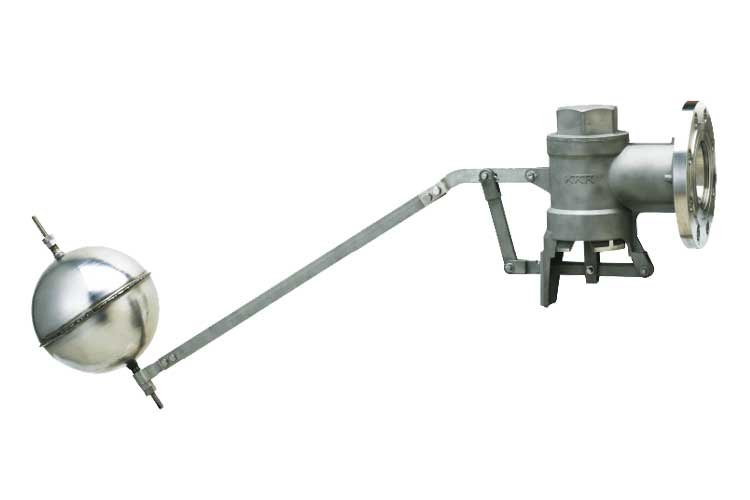

Stainless Steel Float Valve

Stainless Steel Float Valve (SY)

Product Code: SY

Basic Applications:

The Stainless Steel Float Valves use the weight and buoyancy of their float to keep water levels constant inside water reservoir tanks. In addition to potable water, the SY can be used with other special fluids such as pure water, seawater, etc.

Features:

  • No Fluctuation with Pressure
  • Accurate Control
  • Lightweight and Durable
  • Material Prevents Rust Contamination

Product Description:

This valve is designed to fully open when the water level reaches the preset low level and to close drip-tight when the level reaches the preset high point.

The SY series divides inlet pressure into two opposite directions. Pressure is directed up to the piston, while also being directed down to the disk and spindle. This nearly equalizes the opening and closing pressures, thus making a large float with great buoyancy unnecessary. A smaller float is all that is needed to close the vale drip-tight. Models SY 13~25 are double fulcrum valves, and models SY 40~100 are pressure balanced, double-linked types with built-in strainers. The addition of a skirt minimizes water waves.

Specifications:

Nominal Sizes: 15mm (½"), 20mm (¾"), 25mm (1"), 40mm (1½"), 50mm (2"), 65mm (2½"), 80mm (3"), 100mm (4")
Working Temperature: 0 to 60°C
Applicable Fluid: Water
Working Pressure (inlet): above 0 to 1.6 MPa
