Solenoid Valve

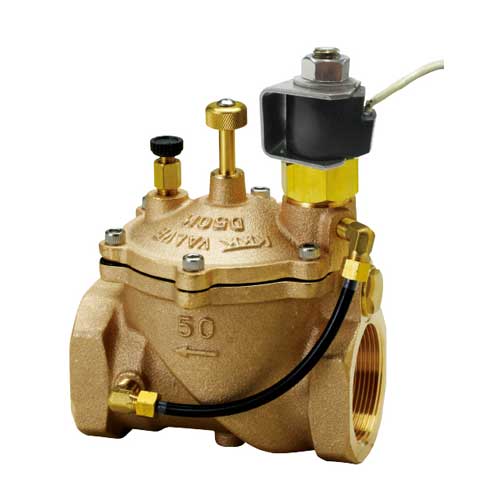

Solenoid Valve (DM)

Product Code: DM

Basic Applications:

The DM is an electronically controlled valve using a pilot system that can be used in various water systems.

Product Description:

The DM is an on-off control valve that either opens or closes by using a solenoid control mechanism as a pilot that responds electrical signals sent to the solenoid mechanism. The solenoid pilot uses a molded coil that is free from troubles such as electrical leakage or coil burn. The pilot system can prevent water hammering.

Features:

  • Trouble-Free Molded Coil Design
  • Manual Safety Feature
  • Prevents Water Hammering
  • Bronze and Stainless Steel Material Prevents Rust Contamination
  • Simple Installation and Maintenance
  • Fully Adjustable
The built-in stainless steel strainer prevents clogging due to sand or other foreign matter. Flow rates can be controlled from full open to full closed by turning the adjustable spindle. A manually operated valve has been included in the design for use during checks or in the case of blackouts. The DM uses a normally closed solenoid.

Specifications:

Working Temperature: 0 to 60°C
Applicable Fluid: Water
Working Pressure: 0.03 to 1.6 MPa
Insulation Grade: B Grade
Voltages: AC24, 100, 110, 220, 230V; DC12, 24V
Operation: Normally Closed
