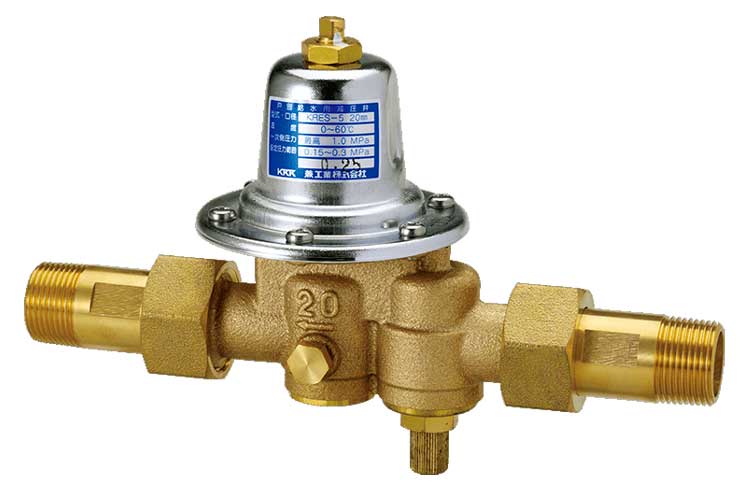

Mounted PRV (KRES)

Product Code: KRES

Basic Applications:

The KRES is a direct acting pressure reducing valve used in various water systems.

Product Description:

The KRES automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a direct acting mechanism that responds to changes in the water supply pressure. It has been housed and installed on a pipe shaft to protect other instruments and pipes.

Features:

  • Completely Automatic
  • Easy Access
  • Bronze Material Prevents Rust Contamination
  • Simple Installation and Maintenance
The built-in strainer prevents clogging due to sand or other foreign matter and can be easily cleaned by simply removing the strainer cap on the inlet side. The use of a union joint allows for easy installation and maintenance. A pressure gauge can be easily installed in the adapter while water is flowing without causing any water leakage.

When during installation a hydraulic pressure test of the water system needs to be done, switching the plug of the KRES enables both direct and reduced pressure to be tested.

Specifications:

Available Size: 20mm
Operating Temp. Range: 0 to 60°C
Applicable Fluid: Water
Working Pressure (inlet): Below 1.0 MPa
Set Outlet Pressure: 0.15~0.3kPa
Standard Set Pressure: 0.2MPa
Vacuum Breaking Function: Closing: Min. 50 kPa; Opening: Min. -55 kPa
Flow Rate: 50 L/min
Connection: Union Joint
