Automatic Selector Valve

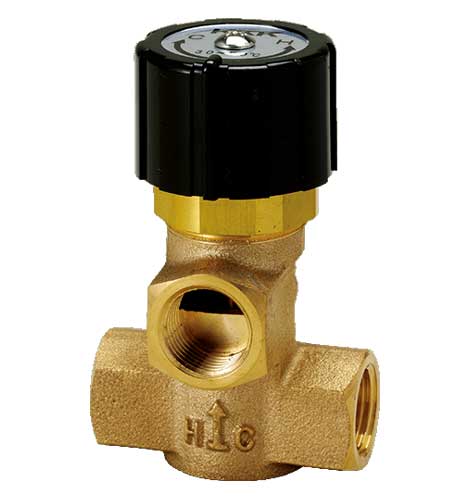

Automatic Selector Valve (TS)

Product Code: TS
The automatic selector valve's thermal wax element automatically selects a downstream port depending on the desired temperature. The open/close operations are controlled directly by a thermal wax element eliminating any need for wiring.

Basic Applications:

The Automatic Selector Valve is used in boiler systems to prevent heat loss.

Features:

  • Completely Automatic Selector Valve
  • No Wiring Required
  • Bronze Material Prevents Rust Contamination
Float Valve TM

Specifications:

Applicable Fluid: Water, Hot Water
Working Pressure: 0 to 1.6 MPa
Actuating Temperature: 68 ± 2°C
Shell Test Pressure: 2.4 MPa
Water Stopped Performance: 0 to 1.5 L/min (0.75MPa)
