Meter Station

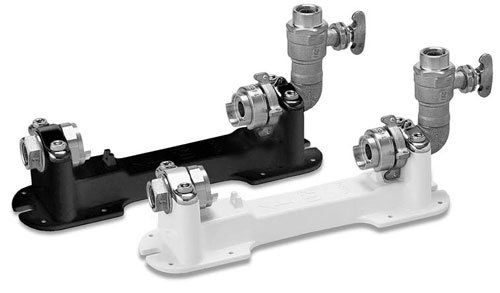

Meter Station (MU)

Product Code: MU

Basic Applications:

The MU Meter Station allows the quick and efficient replacement of various water meters to standard sized water meters. It also enables secure and quick replacement in emergency situations.

Product Description:

The base unit has a flanged bottom that facilitates many installation methods including anchor-bolt, screw, mortar, and concrete bond fixing.

Features:

  • Flexible and Stable
  • Free Positioning
  • Tough and Light
  • Leak-free Plumbing Solution
  • Low Head-Loss
The MU model allows for multi-positioning. The theft-preventing locking ball valve can be rotated 360° horizontally and 270° vertically. The check valve can be rotated 360° vertically. And all valves can be set at any angle.

The aluminum die-casting allows for lightweight durability and the epoxy-coat finishing increases its durability. The design enables secure, leak-free plumbing. The union nut will allow over 40 years of usage.

The redesigning of this meter station has enabled a 500% reduction in head loss (from 20kPa to 4kPa).

Specifications:

Available Sizes: 15mm, 20mm
Applicable Fluid: Water
Working Pressure: 0.05 to 1.6 MPa
Shell Test Pressure: 0 to 60°C
